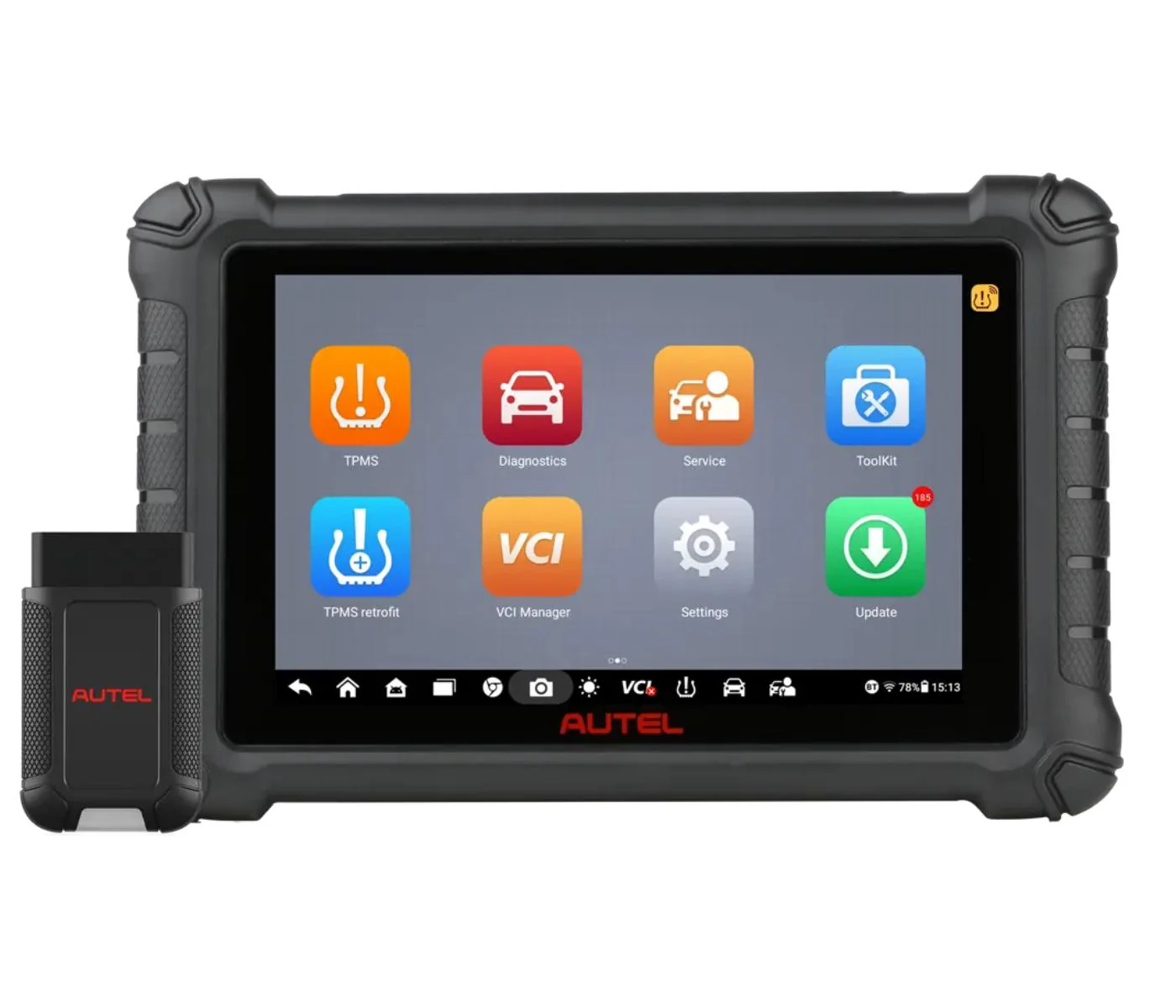

Autel MaxiTPMS TS900 THREE-IN-ONE TPMS, DIAGNOSTICS, & SERVICE WIRELESS TABLET
The Autel MaxiTPMS TS900 is an all-in-one TPMS and diagnostic tablet designed to deliver a complete TPMS solution and full vehicle diagnostics in one tool. It can activate, read, and relearn all known TPMS sensors and program Autel MX-Sensors to replace up to 99% of TPMS sensors on the road today. The TS900 also provides industry-leading relearn-by-OBD vehicle coverage, single-screen TPMS health reports, and compatibility with Autel’s Tesla-ready BLE TPMS sensors.
In addition to TPMS functions, the TS900 performs bi-directional active tests, special functions, and offers an extensive service menu with direct access to more than 40 maintenance tasks. It can generate detailed pre-scan and post-scan reports and supports Wi-Fi sharing and printing. The device runs on Android 11 with a 1.8GHz quad-core processor, 4GB RAM, and 64GB storage, and features an 8-inch touchscreen display with 1280×800 resolution. It also includes Wi-Fi, Bluetooth, a 7700mAh battery, and support for Tesla TPMS sensors using BLE technology.
| Recommended Use | Indoor |
| Operating System | Android™ 11 |
| Processor | RK3566 Quad-core Arm Cortex-A55 processor (1.8 GHz) |
| Memory | 4GB RAM & 64GB ROM |
| Display | 8-inch LCD screen with 1280 x 800 resolution |
| Rear Camera | 8MB |
| Connectivity |
|
| Sensors | Ambient light sensor for brightness auto changing |
| Audio Input/Output |
|
| Power and Battery |
|
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/3 A |
| Power Consumption | Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temperature | 0 to 50°C((32 to 122°F) |
| Storage Temperature | -10 to 60°C (14 to 140°F) |
| Operating Humidity | 5% – 95% non-condensing |
| Dimensions (W x H x D) | 259.87 mm (10.23") x 168.98 mm (6.65") x 33.60 mm (1.32") |
| Net Weight | 998 g (2.2 lbs) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD |
Description
The Autel MaxiTPMS TS900 is an all-in-one TPMS and diagnostic tablet designed to deliver a complete TPMS solution and full vehicle diagnostics in one tool. It can activate, read, and relearn all known TPMS sensors and program Autel MX-Sensors to replace up to 99% of TPMS sensors on the road today. The TS900 also provides industry-leading relearn-by-OBD vehicle coverage, single-screen TPMS health reports, and compatibility with Autel’s Tesla-ready BLE TPMS sensors.
In addition to TPMS functions, the TS900 performs bi-directional active tests, special functions, and offers an extensive service menu with direct access to more than 40 maintenance tasks. It can generate detailed pre-scan and post-scan reports and supports Wi-Fi sharing and printing. The device runs on Android 11 with a 1.8GHz quad-core processor, 4GB RAM, and 64GB storage, and features an 8-inch touchscreen display with 1280×800 resolution. It also includes Wi-Fi, Bluetooth, a 7700mAh battery, and support for Tesla TPMS sensors using BLE technology.
| Recommended Use | Indoor |
| Operating System | Android™ 11 |
| Processor | RK3566 Quad-core Arm Cortex-A55 processor (1.8 GHz) |
| Memory | 4GB RAM & 64GB ROM |
| Display | 8-inch LCD screen with 1280 x 800 resolution |
| Rear Camera | 8MB |
| Connectivity |
|
| Sensors | Ambient light sensor for brightness auto changing |
| Audio Input/Output |
|
| Power and Battery |
|
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/3 A |
| Power Consumption | Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temperature | 0 to 50°C((32 to 122°F) |
| Storage Temperature | -10 to 60°C (14 to 140°F) |
| Operating Humidity | 5% – 95% non-condensing |
| Dimensions (W x H x D) | 259.87 mm (10.23") x 168.98 mm (6.65") x 33.60 mm (1.32") |
| Net Weight | 998 g (2.2 lbs) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD |
