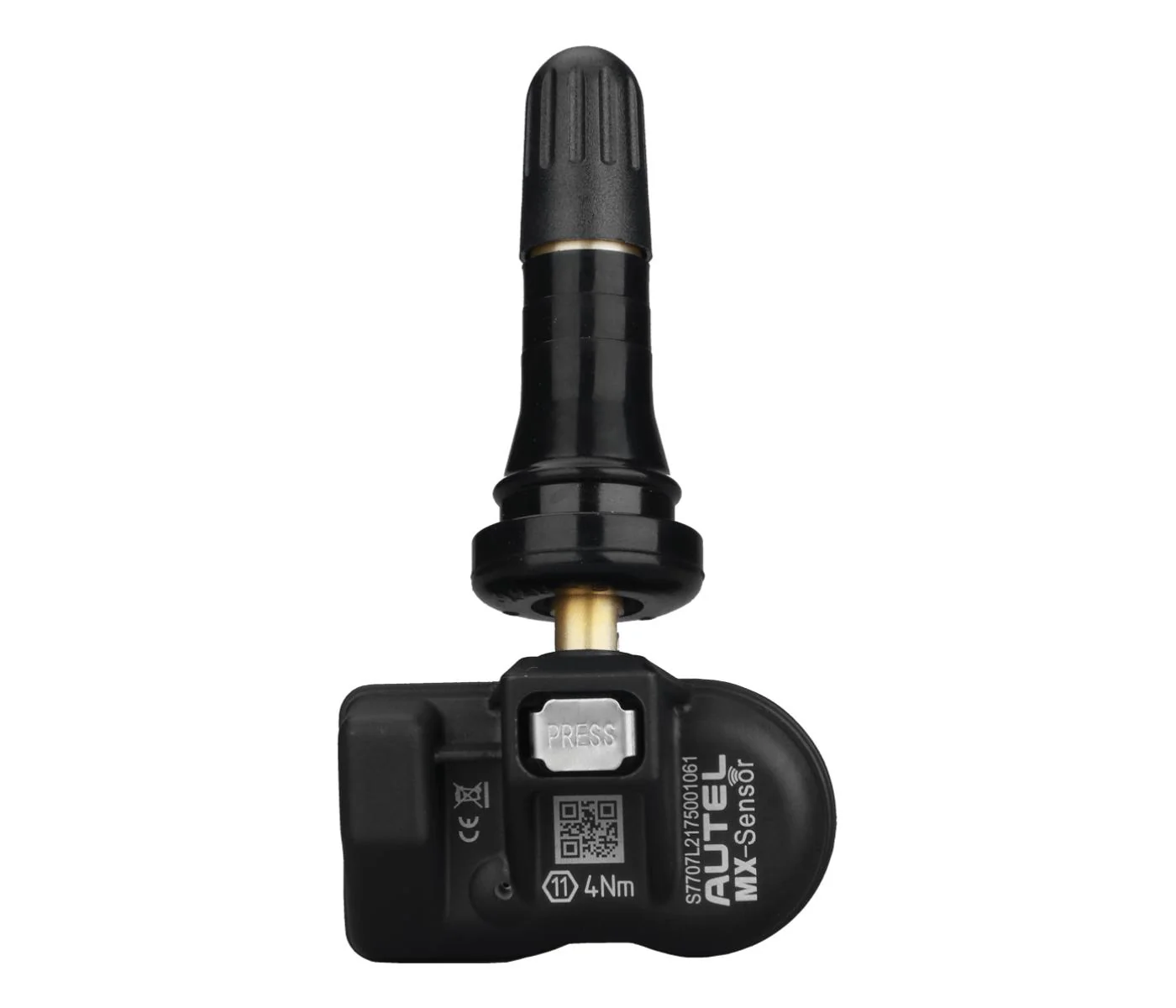

Autel TPSM MX-Sensor 1-Sensor (Rubber Press-In)

The Autel MX-Sensor 1-Sensor (Rubber Press-In) is a programmable TPMS sensor designed to provide reliable tire pressure monitoring for a wide range of vehicles. The 1-Sensor design allows one sensor type to cover up to 99% of vehicles, simplifying inventory with a single SKU. The rubber press-in valve stem design is lightweight and easy to install while maintaining strong signal performance.

The sensor features interchangeable valve stems, allowing quick replacement when needed, and includes a press-release button for easier valve replacement. Built to meet SAE quality standards, the sensor provides maximum signal strength and dependable performance for TPMS systems.

Battery Life	4-6 years
Operating Temperature	-40°C to +125°C
Storage Temperature	-40°C to +35°C
Operating Humidity	≤90%
Operating Frequency	315 MHz / 433 MHz
Pressure Monitoring Range	0 to 800 kPa
Pressure Reading Accuracy	±10 kPa
Temperature Reading Range	-40°C to +125°C
Temperature Reading Accuracy	±5°C
G Sensor Reading Accuracy	±15%
Transmission Power	5-8 dBm
Battery	3.0 V
Dimensions (W x H x D)	42.2 mm x 27.9 mm x 17.4 mm
Weight (Without Valve)	12g
