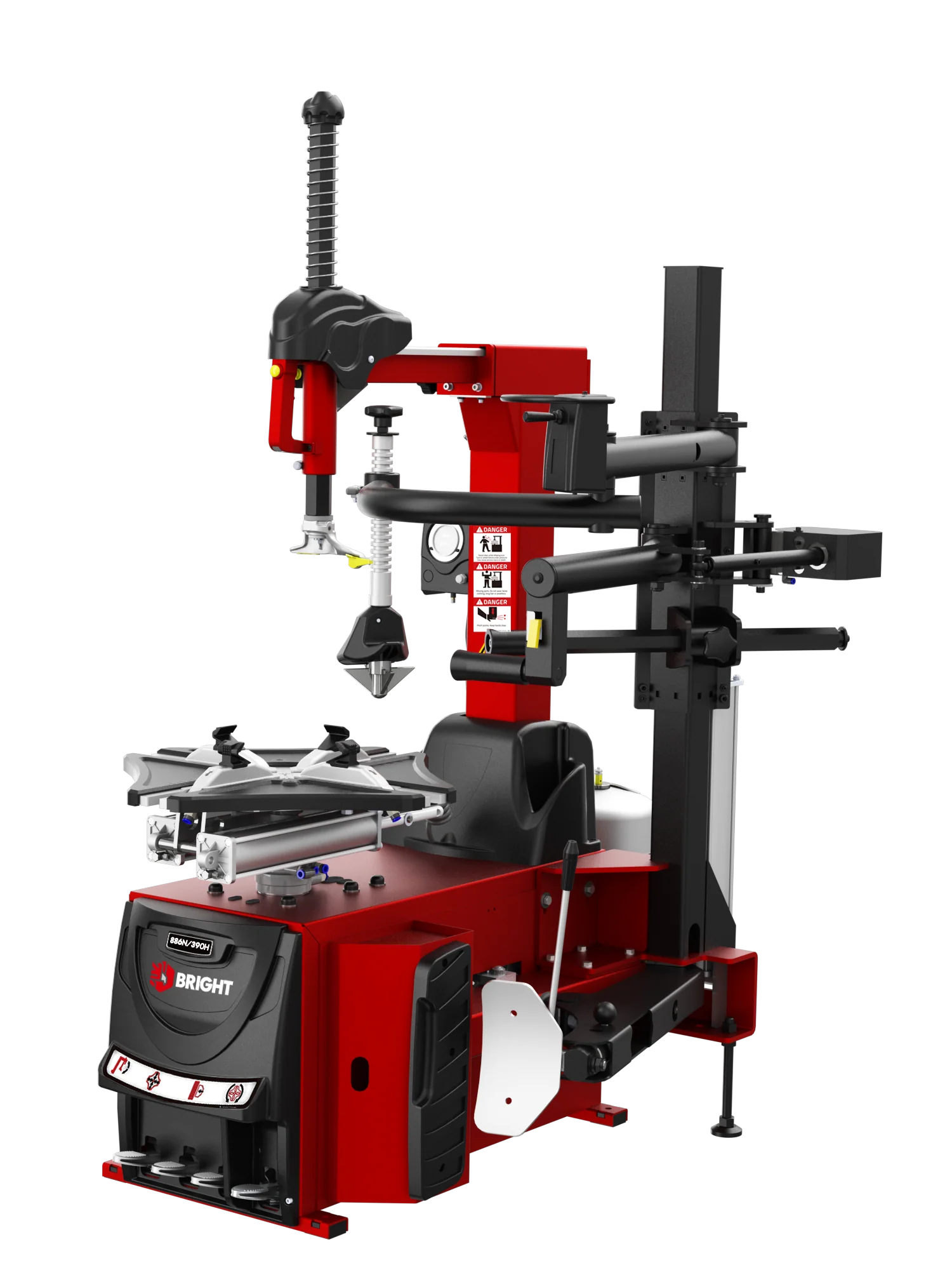

BRIGHT LC886N 400V/50HZ/3P --Double speed with 22“inner adjustable arc turn table
- ZD03 up and down by pneumatic control; easy operation and save both time and labor.
- The clamp cylinder with φ80 diameter as standard increases the clamp power 58Kg than φ75 diameter cylinder to avoid damage the surface of rim due to clamp slip during operation.
- The machine adopts the Φ200mm aluminum bead beaker cylinder as standard configuration having bead break power 2800Kg to bead break the low-profile, run-flat and various RSC tires.
- The wearable washers as standard correspond to Europe standard to protect the personal safety when mounting the tire.
- Reasonable structure pedal assembly with new pedal designed by italy engineer; update pedal appearance; unify brand image.
- The 40A universal switch with bigger and thicker pure silver touching points can bear great load with a long using life.
- double-bending technic and 5mm steel thicker pole ensure high intensity.
- assist arm 390 as standard can press tire centrally using press block; operation easily and simply; improve the demounting and mounting speed.
- Outside Clamp: 11” - 24” inch
- Inside Clamp: 13” - 26” inch
- Rim width: 3” - 14” inch
- Max wheel diameter: 1100 mm
- Working pressure: 8 - 10 bar
- Bead breaking force: 2800 kg
- Powers supply: 110V/220V/380V
- Motor Power: 0.75Kw/1.1Kw
- Rotation per minute: 6.5/13rpm (Optional, must be 3Ph power)
- Noise: ＜70dB
- Machine dimensions: 1870×2100×2160 mm
- Packing dimension: 1400×1020×2000 mm
- Net weight: 259 kg
- Gross weight: 299 kg
- Loading in 40 Ft. container: 31 sets
$830.50
Original: $2,372.85
-65%BRIGHT LC886N 400V/50HZ/3P --Double speed with 22“inner adjustable arc turn table—
$2,372.85
$830.50
Description
- ZD03 up and down by pneumatic control; easy operation and save both time and labor.
- The clamp cylinder with φ80 diameter as standard increases the clamp power 58Kg than φ75 diameter cylinder to avoid damage the surface of rim due to clamp slip during operation.
- The machine adopts the Φ200mm aluminum bead beaker cylinder as standard configuration having bead break power 2800Kg to bead break the low-profile, run-flat and various RSC tires.
- The wearable washers as standard correspond to Europe standard to protect the personal safety when mounting the tire.
- Reasonable structure pedal assembly with new pedal designed by italy engineer; update pedal appearance; unify brand image.
- The 40A universal switch with bigger and thicker pure silver touching points can bear great load with a long using life.
- double-bending technic and 5mm steel thicker pole ensure high intensity.
- assist arm 390 as standard can press tire centrally using press block; operation easily and simply; improve the demounting and mounting speed.
- Outside Clamp: 11” - 24” inch
- Inside Clamp: 13” - 26” inch
- Rim width: 3” - 14” inch
- Max wheel diameter: 1100 mm
- Working pressure: 8 - 10 bar
- Bead breaking force: 2800 kg
- Powers supply: 110V/220V/380V
- Motor Power: 0.75Kw/1.1Kw
- Rotation per minute: 6.5/13rpm (Optional, must be 3Ph power)
- Noise: ＜70dB
- Machine dimensions: 1870×2100×2160 mm
- Packing dimension: 1400×1020×2000 mm
- Net weight: 259 kg
- Gross weight: 299 kg
- Loading in 40 Ft. container: 31 sets
